SAILMAKING SERVICES
BY CHED SAILDESIGN
"SAIL DESIGN IS ART AND KNOW-HOW"

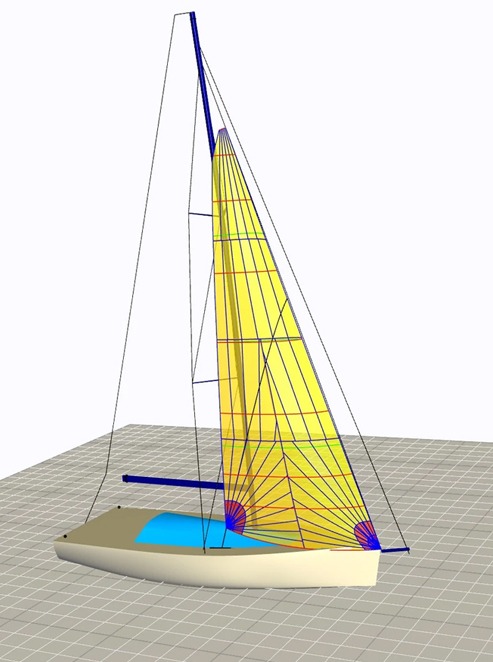

FIBRE LAYOUT DESIGN
Fibre layout is a key point in the saildesign of a membrane sail as the final sail shape is a combinaison of cambers and fibre layout.
​
My services are :
-
Creation of fibre layout for any type of sails
-
Creation of fibre layout groups directly on the 3D surfaces then exportied on 2D, flat panels
-
Creation of your own fibre layout system (combinaison of fibre UPE, aramid, carbone and distribution inside the sail)
-
Use the powerful SMAR Azure fibre tool for shaping fibre groups (control of the density of fibre many points of the sail)

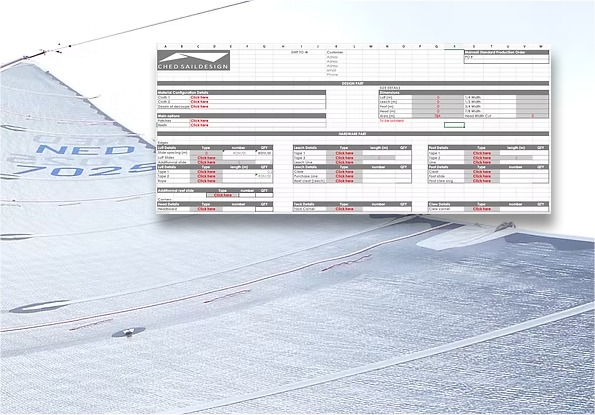

PRODUCTION INFORMATION SHEET
-
Creation of a database of production sheets according to the components you are using in your loft or in the outsourced loft of your choice
-
Creation of files per type of sail and sizes including all the details of fabrication from the tapes sizes to the hardware
-
Sending of the PIS with the design file.

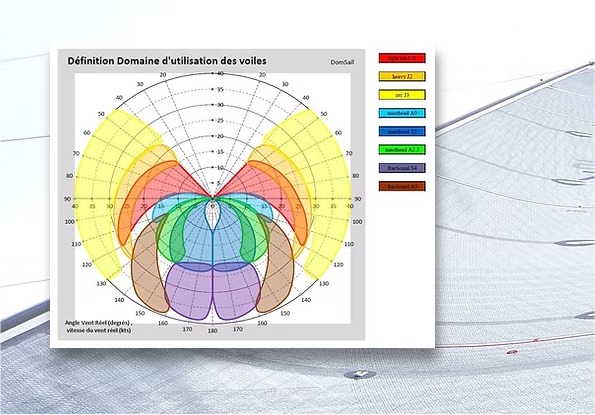

SAIL CHART
-
Creation of sails chart diagrams according to the sail configuration of the boat.
-
Update of the sails chart after the navigation.
-
Creation of standard charts according to your base of sail shapes.
